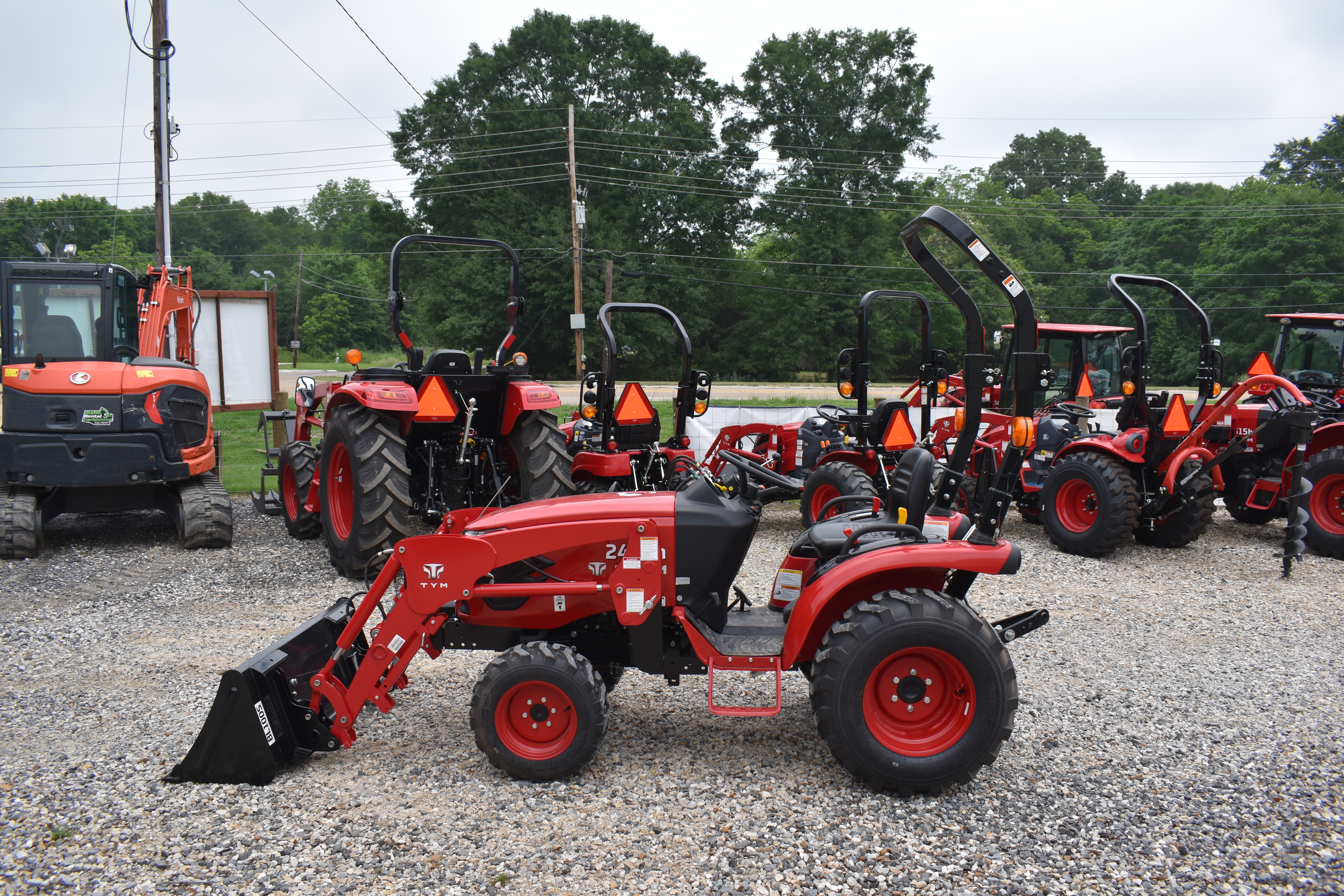

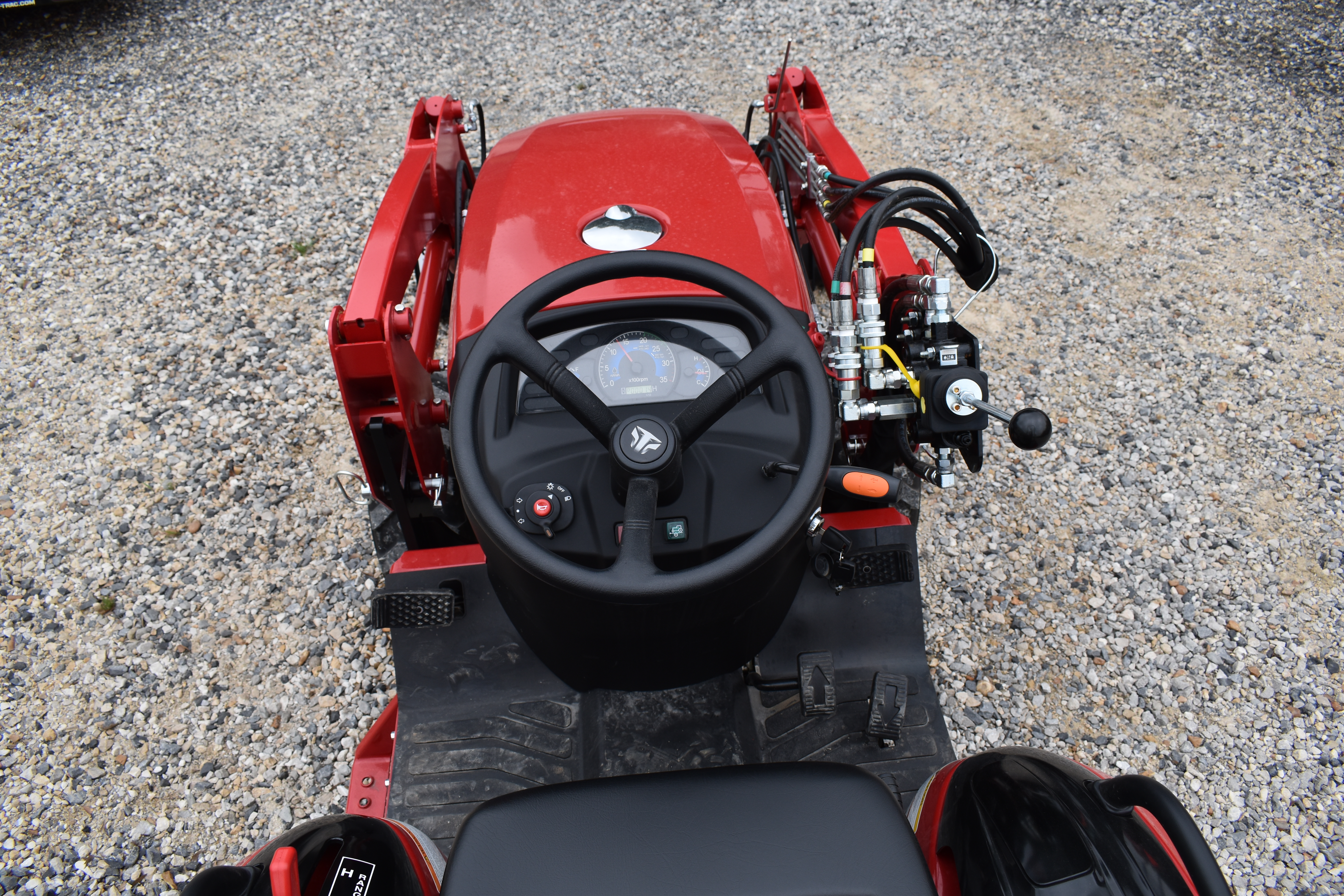

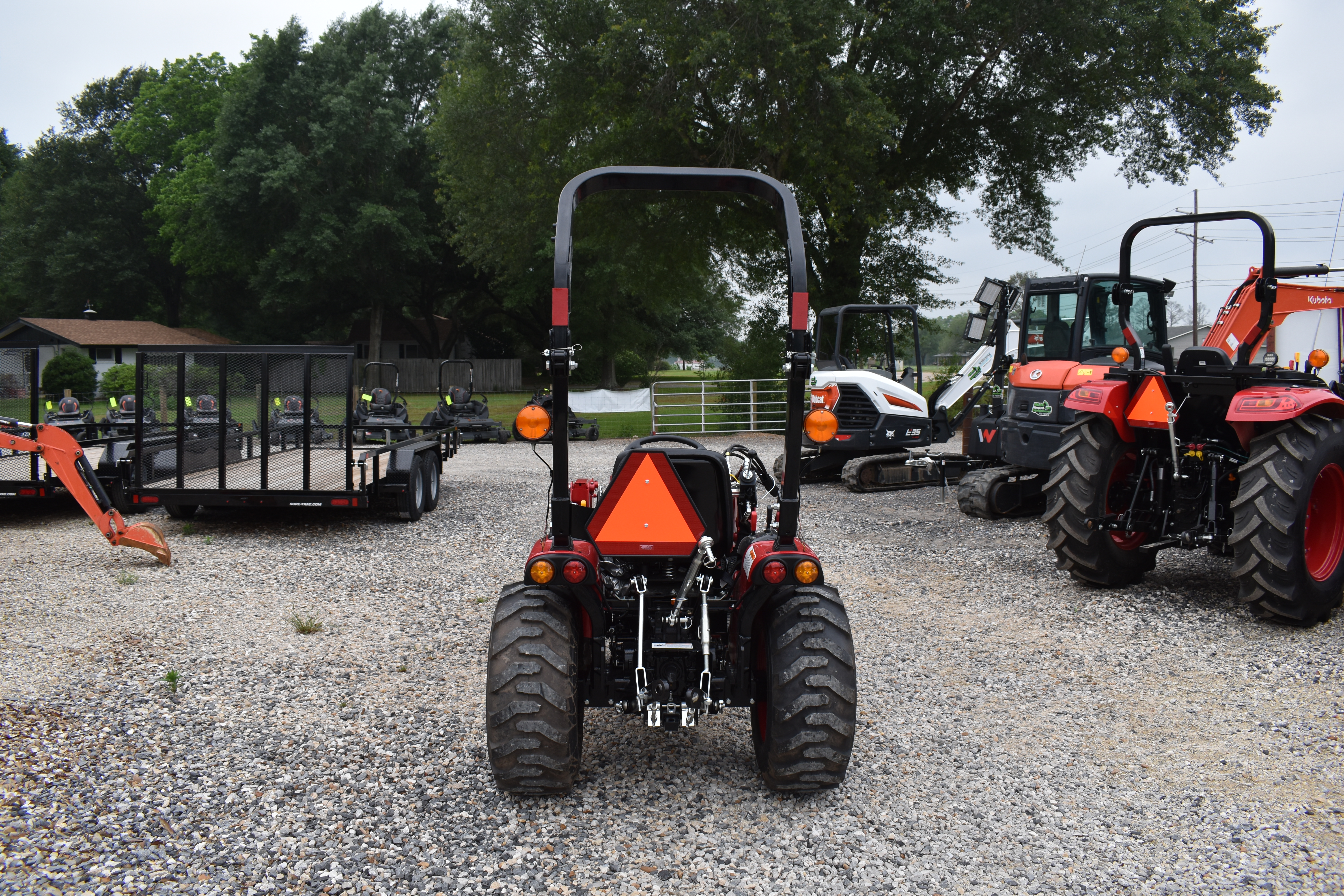

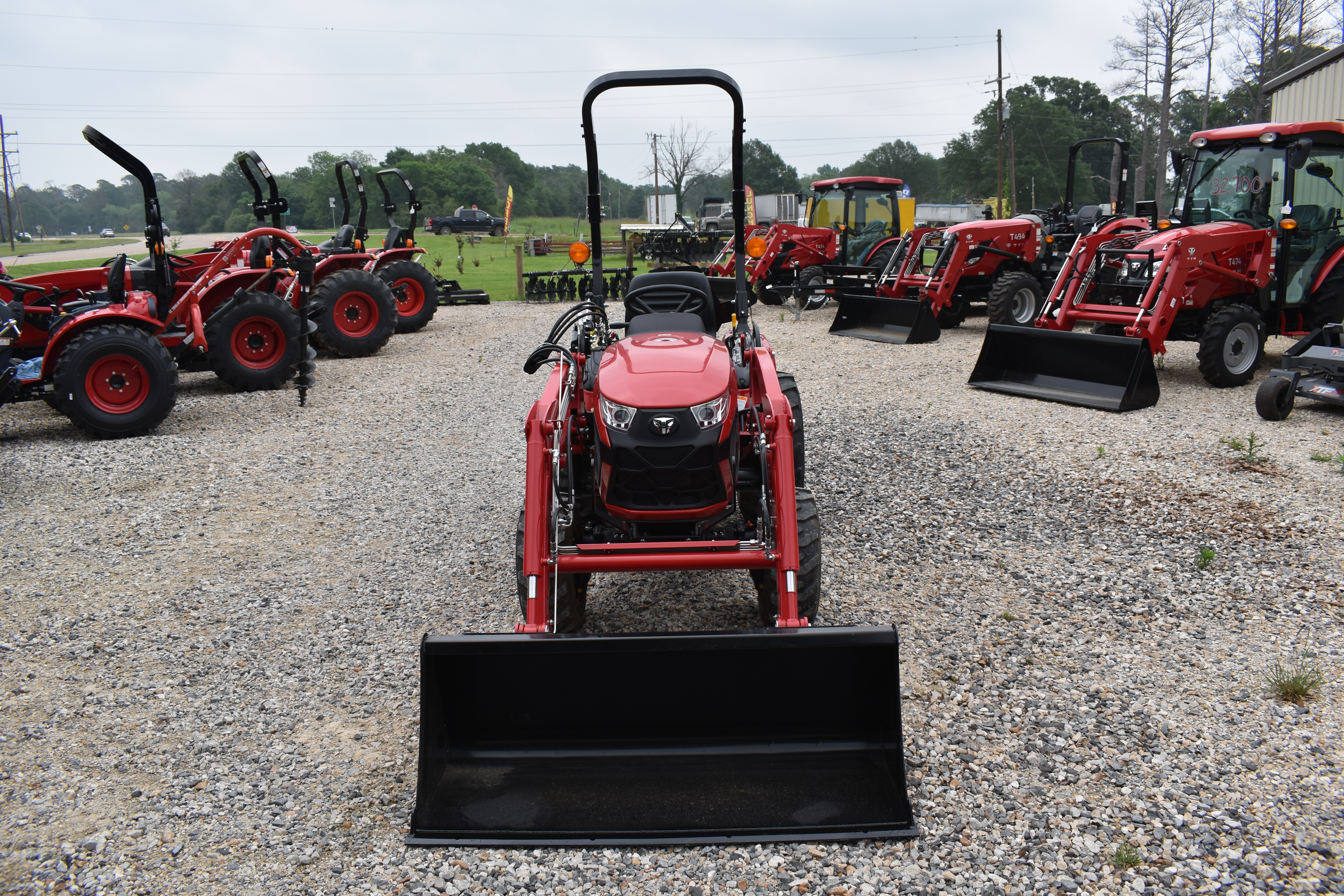

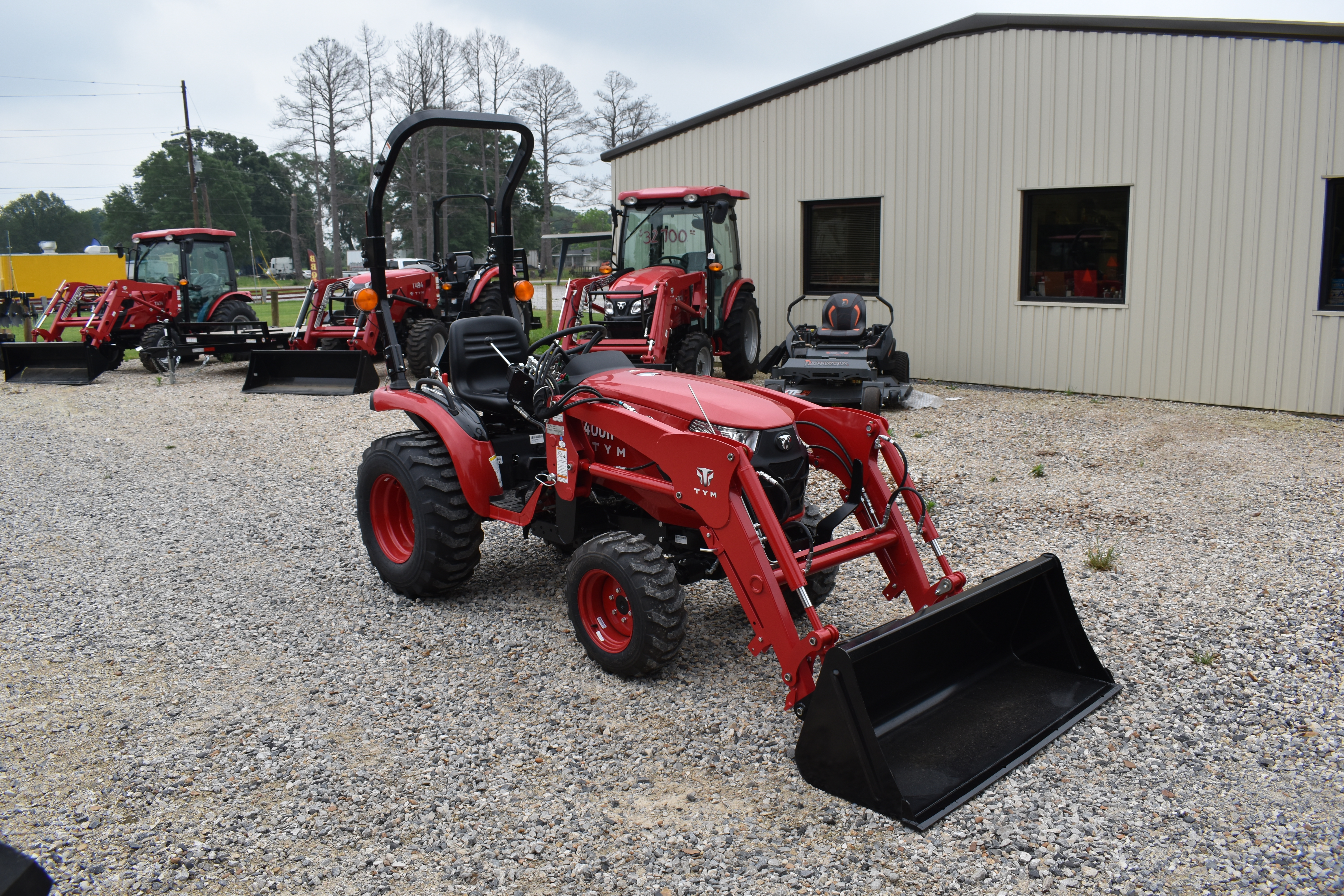

TYM 2400h Tractor/Loader Features:

Series 1, Sub-Compact Tractor

• Engine power 24 hp
• Hitch lift capacity 1499 lb
• 4WD
• Hydrostatic Transmission (2 range controlled with Forward and Reverse pedal)
• Cast Iron Rear End and Transmission Housing
• Wider Operators Platform
• Fold down ROPS
• Removable Radiator Screen
• Flip-up Adjustable Seat
• Hydrostatic Steering
• Dual Hydraulic Pumps
• Metal Hood, Fenders / Powder Coat Finish
• Wet Disc Brakes
• Rear PTO (Optional Mid Mount PTO)

Technical Specifications

ENGINE

• Engine manufacturer : TYM A1100N2
• Type:  Natural Aspiration
• Gross engine power 24 hp | 17.9 kW
• PTO power: 18 hp | 13.5 kW
• Rated engine speed: 2800 rpm
• No. of cylinders: 3
• Displacement: 71.7 cu. in.
• Air cleaner: Dry Element
• Alternator: 12V, 60A
• Fuel system: IDI

POWERTRAIN

• Transmission type:  HST
• No. of speeds: 2-Range
• Max. traveling speed:  11.1 mph
• Brakes:  Wet, Multi-disc
• Steering:  Hydrostatic

HYDRAULIC SYSTEM

• Pump type Single Gear Pump
• Implement flow 3.1 gpm
• Steering flow 4.3 gpm
• Total flow 7.4 gpm

HITCH

• Category 1, 3-point hitch
• Hitch lift capacity:  1499 lb (at 24 inches behind link ends 974 lb)
• Lift control type: Position
• No. of standard remote valves: Optional (2)

PTO

• PTO type: Live
• PTO rear: 540 rpm (Optional Mid-mount PTO special order)

CAPACITIES

• Fuel tank 6.0 gal 6.0 gal
• Coolant 5.3 qt 5.3 qt
• Crankcase 3.2 qt 3.2 qt
• Transmission/Hydraulics system 2.9 gal 2.6 gal
• Front axle 0.8 qt 0.8 qt

DIMENSIONS & WEIGHTS

• Overall length with 3-point hitch 120.3 in.
• Overall width 44.2 in
• Wheelbase 59.1 in.
• Height to top of ROPS 87.3 in.
• Min. ground clearance 12.1 in.
• Min. turn radius with brakes 9.61 ft
• Min. turn radius without brakes 9.6 ft
• Weight with ROPS: 1892 lb

STANDARD TIRES

• R1 Agricultural – Front 6-12
• R1 Agricultural – Rear 9.5-16
• R3 Turf – Front 23×8.50-12
• R3 Turf – Rear 33×12.50-16.5
• R4 Industrial – Front 23×8.50-12
• R4 Industrial – Rear 12-16.5

BL100S Front-End Loader Specs

Enhance the functionality of your TYM sub-compact tractor with the BL S front-end loader. With impressive lift capacity and height, this TYM front-end loader can help you lift, move and handle material more effectively.

CAPACITIES & REACH

• Lift height 88.3 in. | 2243 mm
• Max. lift height under level bucket 83.1 in. | 2112 mm
• Clearance with bucket dumped 68.9 in. | 1751 mm
• Reach at maximum lift height 15.5 in. | 393 mm
• Max. dump angle 43°
• Reach with bucket on ground 58.3 in. | 1481 mm
• Max. rollback angle 38°
• Digging depth 4.2 in. | 106 mm
• Lift capacity 1314 lb | 596 kgf
• Breakout force at ground level, pivot points 1960 lb | 889 kgf
• Bucket rollback force at ground line 1541 lb | 699 kgf
• Bucket capacity 5.3 cu. ft | 0.15 cu. m
• Self leveling NA
• Relief valve setting (Loader control valve) 2276 psi | 160 kg/sq. cm
• Compatible Bucket size 66″ Front-End Loader bucket

DIMENSIONS & WEIGHTS

• Overall height in carry position 45.7 in. | 1160 mm
• Depth of Attachment (to the back of the inner shell) 18.2 in. | 462 mm
• Height of Attachment 19.1 in. | 484 mm
• Length of Attachment (to pivot point) 23.1 in. | 586 mm
• Weight of boom & quick attach mechanism (1) 306 lb | 139 kg
• Weight of mounting frame (2) 136 lb | 62 kg
• Weight of bucket (3) 146 lb | 66 kg
• Loader total weight (1+2+3) 587 lb | 266 kg

CYCLE TIMES

• Boom raising time 3.8 sec
• Boom lowering time 2.1 sec
• Bucket rollback time 2.7 sec
• Bucket dumping time 4.2 sec
